FIT BIKES @ ROLLYA.

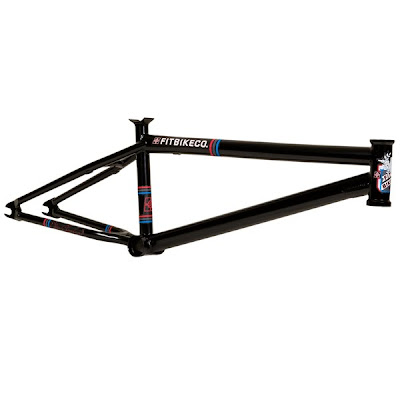

FIT S3.5 AITKEN FRAME.


FIT S3.5 AITKEN FRAME.TT20.5" , 20.75" , 21"
Mike Aitken signature frame made in the USA from air hardened, heat-treated, butted chromoly featuring an integrated headtube, dent resistant tear drop downtube, integrated seat clamp, Mid BB, heat-treated micro dropouts, removable brake mounts, tapered and swaged seatstays, laser cut seat and chain stay bridges and an extra wide rear end for massive tire clearance.
Headset Type: Integrated (Campy Spec)
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.65"
Headtube Angle: 75°
Seattube Angle: 71°
Seattube Height: 8.25" (210mm)
Seatpost Size: 25.4mm
Dropout Size: 14mm
Weight: 4 lbs 9.2 oz

FIT HAWK V2 FRAME.



FIT HAWK V2 FRAME.TT 20.5" , 20.75" , 21"
Chase Hawk signature frame made in the USA from 4Q-baked 4130 chromoly with an integrated headtube, top and downtube gussets, externally machined Mid BB shell, integrated seat post clamp, tapered seat and chainstays, removable brake mounts located under the seatstays, removable cable guides, widened rear end for massive tire clearance and 5mm thick dropouts.
Headset Type: Integrated
Gyro Tabs: N/A
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.55"
Headtube Angle: 75°
Seattube Angle: 71°
Seatpost Size: 25.4mm
Seattube Height: 8.5" (215mm)
Dropout Size: 14mm
Weight: 4 lbs 6.2 oz

FIT EDDIE 2 FRAME.



FIT EDDIE 2 FRAME TT 20.5" , 20.75" , 21.25"
Eddie Cleveland signature frame made from 4130 multi-butted, heat-treated chromoly featuring an integrated headtube drilled for gyro tabs, ovalized downtube with gusset, externally machined Mid BB shell, integrated Pivotal post, removable brake mounts and cable guides, tapered seatstays and a widened rear end for massive tire clearance. Note: Listed sizes are the rideable toptube measurements. The actual toptube measurement will be longer than the measurement listed. Not intended for use with pegs.
Headset Type: Integrated (Campy Spec)
Gyro Tabs: Removable (Included)
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.65" (21.25 XXL - 13.875")
Headtube Angle: 75°
Seattube Angle: 69°
Seatpost Size: Integrated Pivotal Post
Seattube Height: 8.2" (209mm)
Dropout Size: 14mm
Weight: 4 lbs 13.6 oz

FIT ED LT FRAME.


FIT ED LT FRAME TT20.5" , 20.75" , 21"
Redesigned Edwin DeLaRosa signature model with a lower stand over height than the original model, dent resistant ovalized downtube and heat treated chainstays, externally machined Mid BB shell, integrated headtube, "4Q Baked" heat-treated dropouts and integrated seat clamp.
Headset Type: Integrated (Campy Spec)
Gyro Tabs: N/A
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.75" (21"TT has a 14.25" CS)
Headtube Angle: 75°
Seattube Angle: 71°
Seatpost Size: 25.4mm
Seattube Height: 8.25" (210mm)
Dropout Size: 14mm
Weight: 4 lbs 13.5 oz

FIT DEHART 2 FRAME.


FIT DEHART 2 FRAME.TT 20.5" , 20.75"
Chase Dehart signature frame made from 4130 heat-treated, butted chromoly featuring an integrated headtube drilled for gyro tabs, tapered toptube, internally gusseted downtube, Integrated seat clamp, butted seattube, externally machined Mid BB shell, tapered seat and chainstays, removable brake mounts and cable guides and a widened rear end for massive tire clearance.
Headset Type: Integrated (Campy Spec)
Gyro Tabs: Removable (Included)
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.65"
Headtube Angle: 75°
Seattube Angle: 71°
Seatpost Size: 25.4mm
Seattube Height: 8.15" (207mm)
Dropout Size: 14mm
Weight: 4 lbs 11 oz

วันอังคารที่ 22 กันยายน พ.ศ. 2552

FIT DAK FRAME.


FIT DAK FRAME. TT 20.75" , 21 "
Dakota Roche signature model made in the USA from heat-treated chromoly featuring an integrated headtube, integrated seat clamp, Mid BB, heat-treated micro dropouts, removable brake mounts, tapered and swaged seatstays and an extra wide rear end for large tire clearance.
Headset Type: Integrated (Campy Spec)
Gyro Tabs: N/A
BB Type: Mid
BB Height: 11.8"
Chainstay: 13.65"
Headtube Angle: 75°
Seattube Angle: 71°
Seatpost Size: 25.4mm
Seattube Height: 8.15" (207mm)
Dropout Size: 14mm
Weight: 4 lbs 5.5 oz

FIT SKY HIGH BARS.


FIT SKY HIGH BARS.
2-pc bars made from 13-butted chromoly with the "4Q Baked" heat-treating process to increase strength without adding weight.
Rise: 8.25"
Width: 29"
Backsweep: 11°
Upsweep: 1.5°
Weight: 26.8 oz

FIT 4-PC BARS.


FIT 4-PC BARS.
4-pc bars made in the USA from "4Q Baked" butted chromoly with a 3/4" cross bar.
Rise: 7.75" / 8.0"
Width: 25" / 28"
Backsweep: 8°
Upsweep: 5°
Weight: 25.6 oz

FIT HIGH BARS.


FIT HIGH BARS.
a.k.a. Northwest Bars. Made from 13-butted chromoly tubing with "4Q Baked" heat-treating.
Rise: 8"
Width: 28"
Backsweep: 11°
Upsweep: 1.5°
Weight: 28.3 oz

FIT PC PIVOTAL SEAT.


FIT PC PIVOTAL SEAT.
Slim Pivotal seat with no cover or padding for the lightest weight possible. Textured top helps to prevent slipping and a hollow Pivotal bolt holds the seat tight. (5.9 oz)

FIT SHIV FORK.



FIT SHIV FORK.
Made from "4Q Baked" heat-treated chromoly with butted and radically tapered legs. Steerer tube is thicker internally at front and back for strength. Features an integrated bearing race. (29.4 oz)
Note: Only compatible with integrated headsets.
Height: 312mm
Steerer Tube Length: 160mm
Offset: 30.5mm
Compression Bolt: 10x1.25mm
Compression bolt Tool: 6mm Allen Key
Weight: 29.4 oz

FIT BLADE LITE FORK.


FIT BLADE LITE FORK.
Made from "4Q Baked" heat-treated chromoly with double-butted and tapered legs. Exclusive double "Fit Flute" steerer tube with aluminum pre-load bolt. 20 x 1-1/8"
Height: 314mm
Steerer Tube Length: 163mm
Offset: 32mm
Weight: 34.7 oz
Compression Bolt: 10 x 1.25mm
Compression Bolt Tool: 6mm Allen or 32mm Wrench

FIT FAF TIRE.


FIT FAF TIRE.
Street design directional tread pattern with micro-knurling for extra traction. Micro-knurled sidewall patch for sidewall durability. 110 psi max.

FIT FAF-K FOLDING TIRE.


FIT FAF-K FOLDING TIRE.
Street design directional tread pattern with micro knurling for extra traction, micro knurled sidewall patch for sidewall durability and Kevlar bead for extra weight savings. 110 psi max.
20 x 1.95"
Inflated Width: 48mm (1.89")
Inflated Diameter: 509mm (20.03")
Max Pressure: 110 psi
Weight: 13.6 oz
20 x 2.10"
Inflated Width: 52mm (2.04")
Inflated Diameter: 517mm (20.35")
Max Pressure: 110 psi
Weight: 18 oz

FIT TEAM GRIP.


FIT TEAM GRIP.
New team grips from Fit. These grips feature a medium diameter and a super-soft feel. complete with plastic bar ends.

FIT EDDIE GRIP.


FIT EDDIE GRIP.
Eddie Cleveland signature grips made from soft rubber compound with an all-over micro knurled grip pattern and a large fit logo near the flange. Sold in Pairs
Installed Diameter: 28mm (1.1")
Length: 140mm (5.5")
Bar Ends: Nylon Push-in included

FIT DAK GRIPS.


FIT DAK GRIPS.
Dakota Roche signature grip made from a soft tacky rubber with a lightly textured grip area featuring an allover Fit logo pattern.
Diameter: 1.18" (30mm)
Length: 5.43" (138mm)
Bar Ends: Plastic Push Style

FIT Pivotal Post.



The Fit Bike Co Pivotal Post is a lightweight aluminium Pivotal post with laser etched logos

FIT Lo-Bolt Pivotal Seat.

Fit Lo-Bolt Pivotal Seat

-Pivotal slim style seat that uses a single bolt to fasten the seat to the post for less weight and simple installion. For use with Pivotal Technology seat posts only.
Weight: 9.3ozs..
